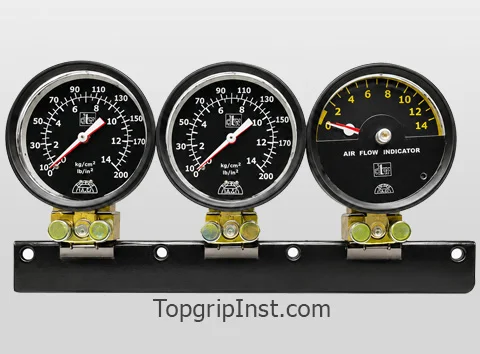

Main Purpose of Air Gauge Complex
The Air Gauge Complex is a pressure-indication unit used in locomotives to display and monitor various pneumatic system pressures. Its main purpose is to provide real-time visual indication of critical air pressures used for braking, train pipe control, and auxiliary operations, ensuring safe and efficient train handling.
What It Essentially Does
It shows the driver the status of air pressure in different brake and reservoir circuits, helping maintain safe braking performance and system health.
Key Functions of Air Gauge Complex
- Indication of Air Pressures
- Displays different pneumatic system pressures like BP, MR, BC, ER, CR, etc.
- Helps the driver know the exact braking air status at any moment.
- Monitoring of Brake Performance
- Shows how brake pipe and brake cylinder pressures vary during application and release.
- Assists in judging brake response and braking efficiency.
- Leak Detection
- Sudden drop in displayed pressure indicates leakage.
- Helps the driver identify air loss in reservoirs or brake pipe systems.
- Ensuring Safe Train Operations
- Guides the driver in maintaining proper BP and MR pressure levels.
- Prevents over-charging or under-charging of the brake system.
- Real-time Visual Feedback During Driving
- Pressure changes can be visually monitored instantly.
- Useful during acceleration, braking, gradient operation, shunting, etc.
- Assistance in Fault Diagnosis
- Pressure imbalance or unusual variation helps detect brake, valve, or pipeline fault.
- Supports maintenance and troubleshooting.
